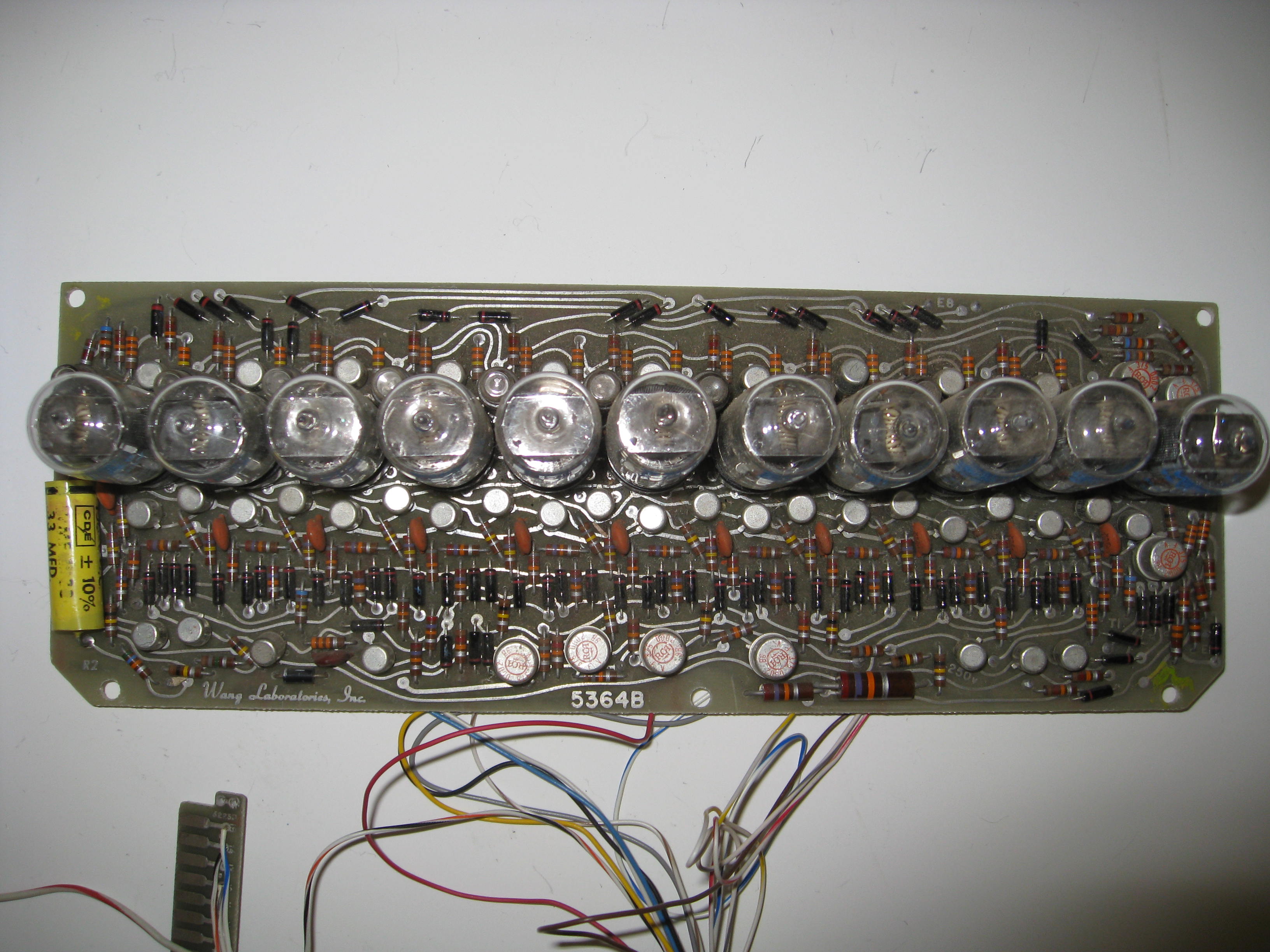

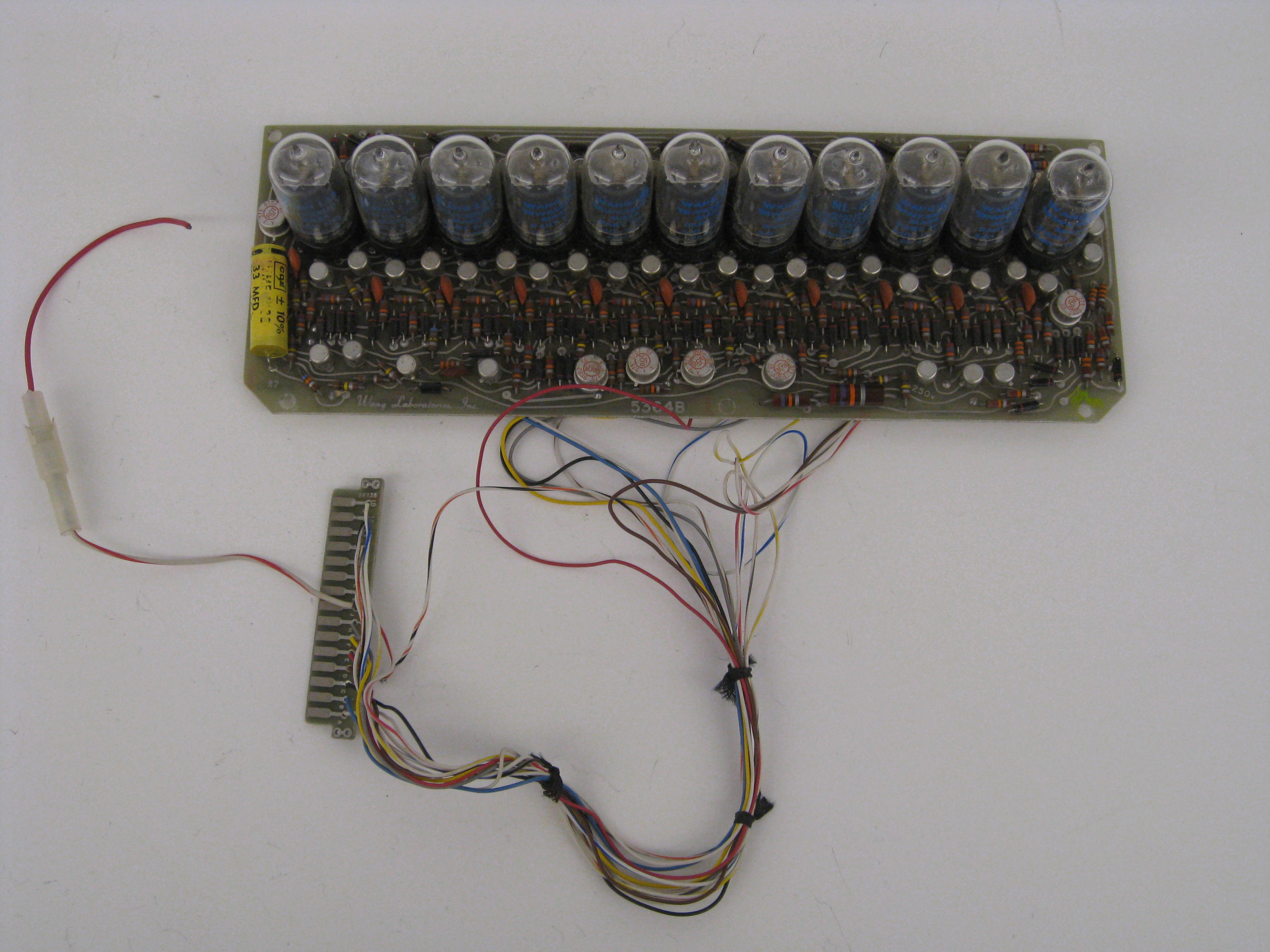

Vacuum Tube Decade Counter
Sun, 2010-02-07 16:22 — panjiabe
From Stone's notes:
Decade counter - 30 pins in top; every third one represents a digit. To increment the count, do successive lowering and raising volting on the pins adjacent to the digit pins:
n n+1
* o o *
low high
low high
low high
Head of tube projects through numbered bezel - lighted dot identifies digit.
